About This

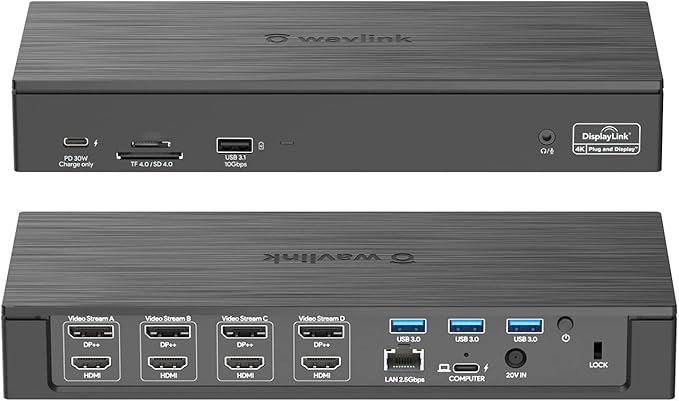

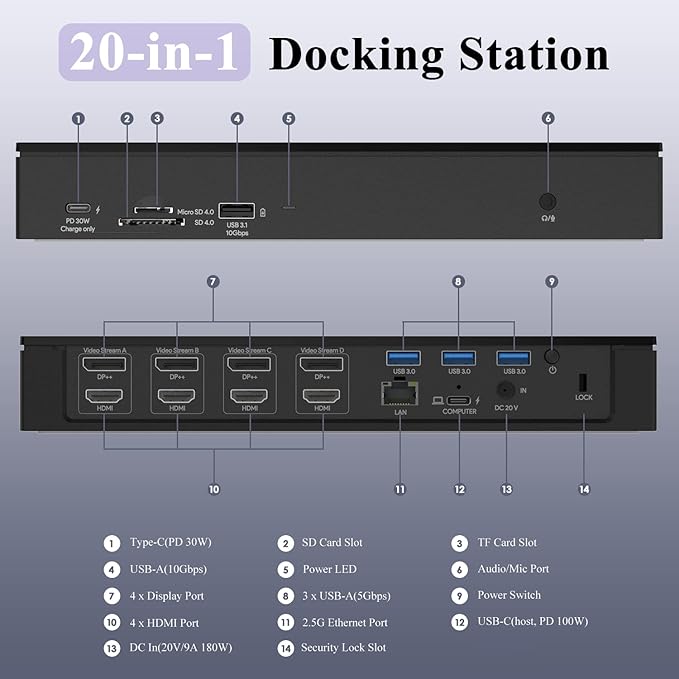

• Enterprise-level quad 4K/dual 5k universal docking station: It's an ideal choice for large enterprises and designers, which provides a total of 20 ports: 4 x Displayport, 4 x HDMI, 1 x DC in, 1 x DC out, 100W PD charging to host, 2.5Gbps RJ45 Ethernet port, SD/TF card reader, PD 30W USB-C port(charge only), 3x USB3.0 Type A ports(5Gbps), USB3.1 Gen2 Type A port(10Gbps, supports BC 1.2 fast charging), 2-in-1 4-Pole 3.5mm Audio and Mic

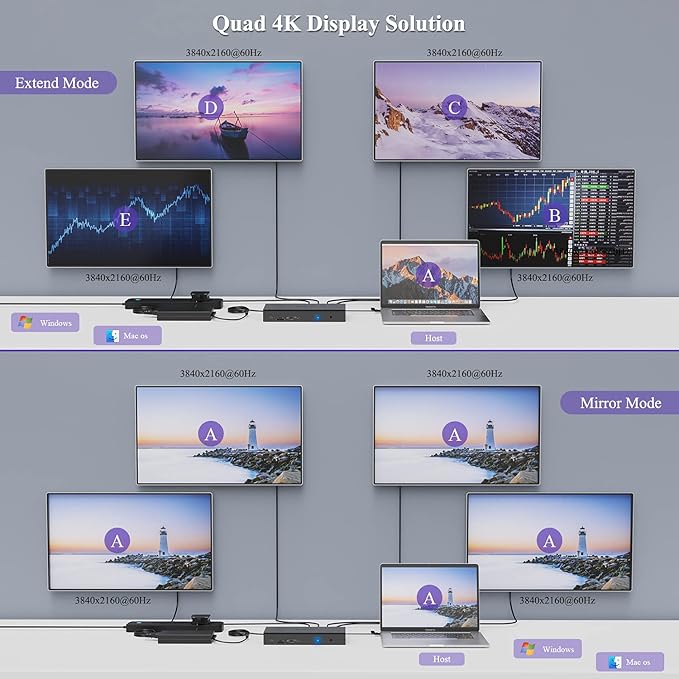

• Multiple Display: Quad DisplayPort or Quad HDMI or multiple DP + HDMI displays, support Quad 4K (3840x2160@60Hz) displays output, with the mirror mode and extend mode for Windows OS and Mac OS. Note: You can only either connect the DP port or HDMI port within the same video stream,if you plug in both, DP will be working, HDMI will not. Tips: Support up to 2x5K displays. Only Windows system supports up to 5K, Mac system supports up to 4K

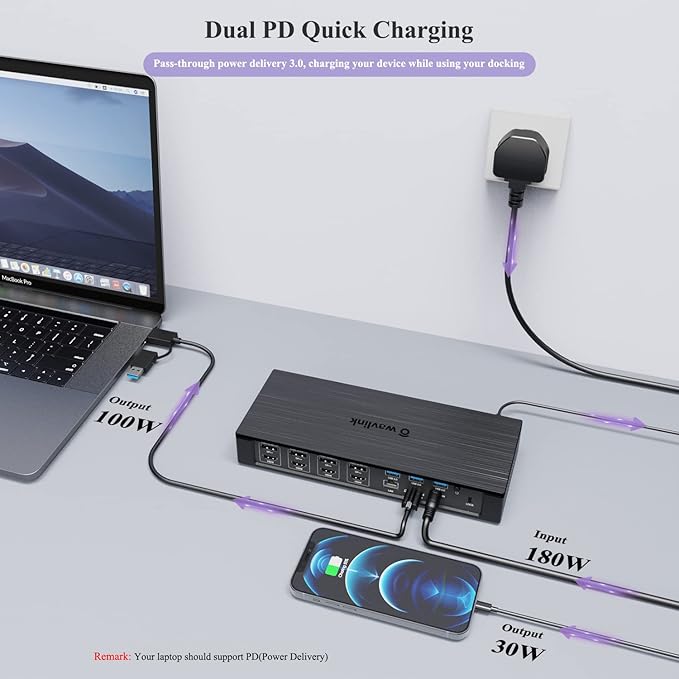

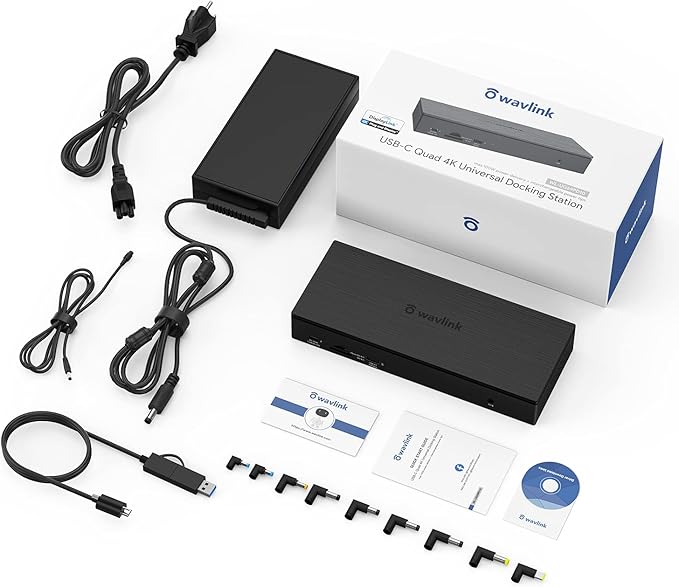

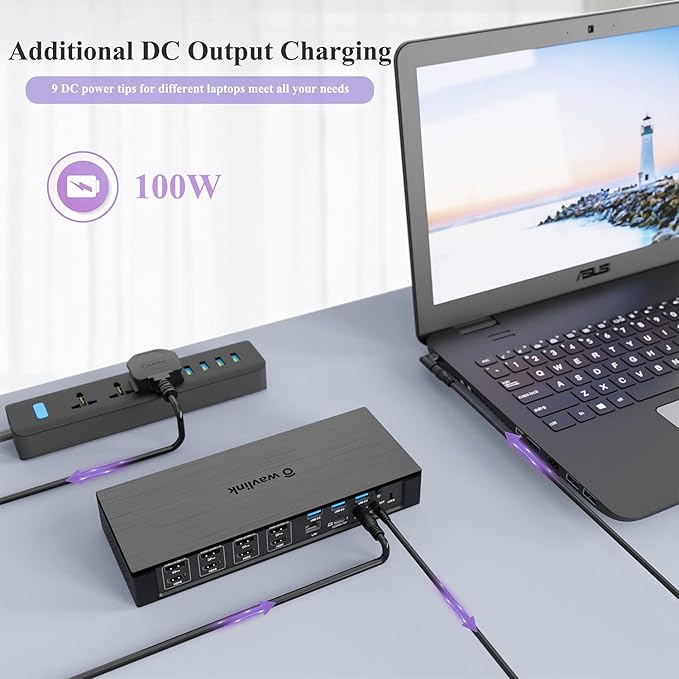

• About Charging: This USB C dock has a 180W power adapter, provides max 100W to charge your PC via USB C. Note:The computer's USB-C port must support PD charging. DC Out charging for USB-A computers, equipped with 9 DC power tips that can be compatible with DELL/HP/ACER/ ASUS/LENOVO/CMOPAQ/TOSHIBA/FUJITSU/GATEWAY/IBM laptop. Note: DC out charging power of the laptop shouldn’t be higher than 100W, otherwise it cannot be charged. USB-C PD Charging and DC out cannot be used at the same time

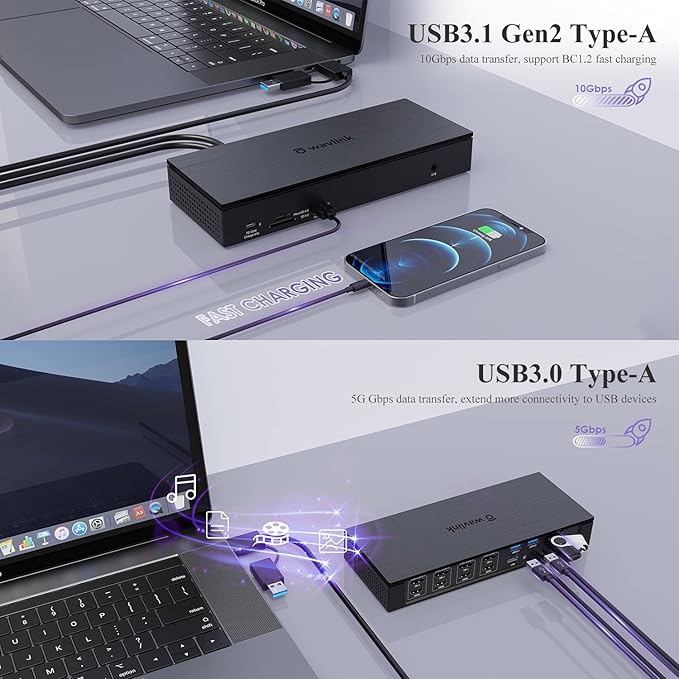

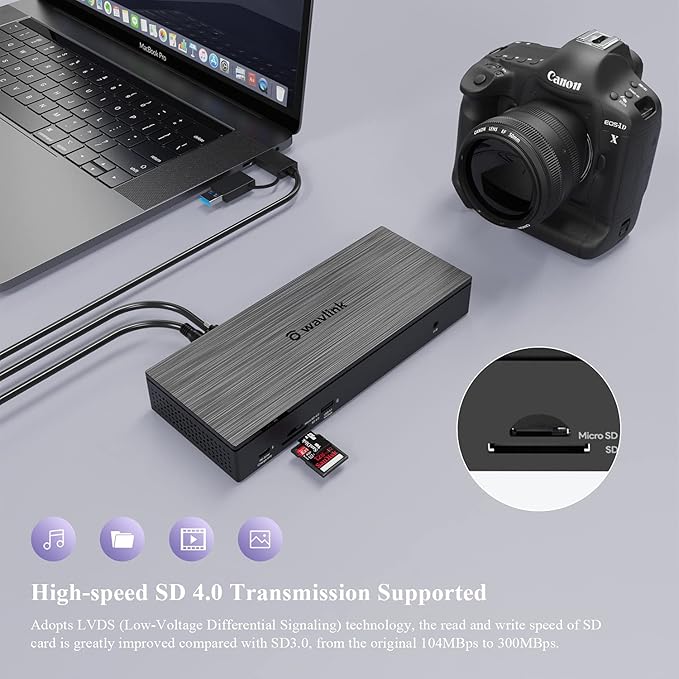

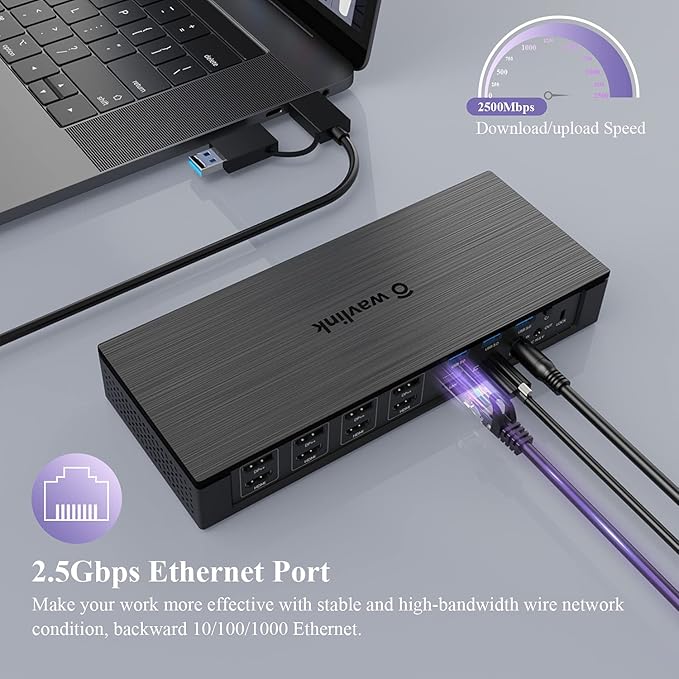

• Other ports: A USB-C port (PD 30W, no data transfer) for downstream charging, provides up to 30W for your phone/ipad or any USB-C devices which support USB PD charging. USB3.1 Type-A port up to 10Gbps data transmission and supports BC1.2 fast charging. 3 x USB3.0 ports data transfer up to 5Gbps. SD/TF Card Readers with max 312MB/s enable to work simultaneously and support different memory card formats. 2.5Gbps Ethernet port wired connection ensures a more secure and stable network
• COMPATIBILITY: - Compatible with Windows 7/8/8.1/10/11, Mac 10.8-12.x or latest, Chrome, Android, Ubuntu systems. A USB C dock for life with hassle free purchase, 2 years hassle free and friendly customer service. If you have any questions about our USB Docking Station, please feel free to contact us.
• Superior Detail Design: Built-in 76252mm² heat sink for stable operation even in 60℃ heat environment. Vents on both sides and dust mesh create a convection cooling channel to prevent dust and foreign objects from entering the docking station. Cable retainers prevent sudden disconnection of the device. Integrated lock slot accommodates a standard security lock to protect the device (security lock not included)

Overview

• Brand : WAVLINK
• Color : Black+ PD 100W
• Hardware Interface : HDMI, USB Docking Station, USB Type C
• Compatible Devices : Apple M1/M2/M3 and Intel Macs (with macOS 10.15 or later), Microsoft Surface line, HP Spectre x360 series, Dell XPS 13 & XPS 15 / Latitude, Lenovo Thinkpad T series Apple M1/M2/M3 and Intel Macs (with macOS 10.15 or later), Microsoft Surface line, HP Spectre x360 series, Dell XPS 13 & XPS 15 / Latitude, Lenovo Thinkpad T series
• Total USB Ports : 4
• Product Dimensions : 6"L x 1"W x 0.3"H
• Number of Ports : 19
• Item Weight : 3 Pounds
• Total HDMI Ports : 4
• Wattage : 100 watts
